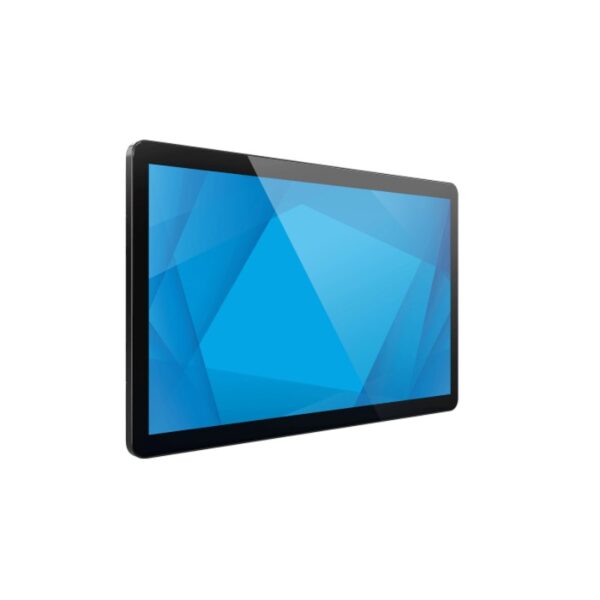

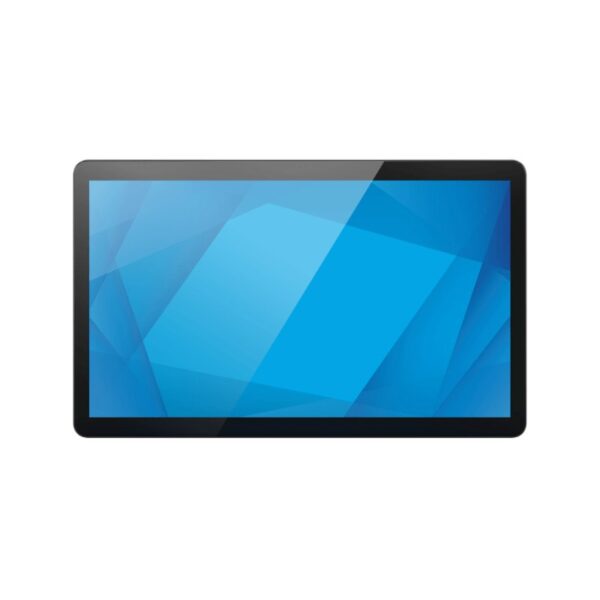

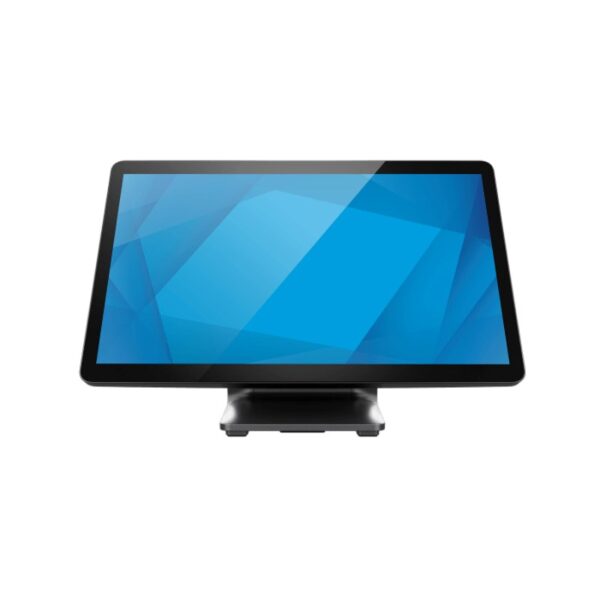

Elo 1504L 15.6” Anti-glare Touchscreen Monitor
Product Codes: E969493 (stand), E969292 (no stand)
Features:
- 15.6″ Full HD Display – Crisp 1920×1080 resolution with edge-to-edge glass and anti-glare coating.
- 10-Point PCAP Touch – Highly responsive TouchPro® projected capacitive (PCAP) technology—smooth, tablet-like interaction.
- USB-C Single-Cable Simplicity – One cable delivers power, touch, and video. Also includes HDMI, DisplayPort, and USB-A ports.
- Durable & Commercial-Grade – IP54-rated for resistance to dust and spills; IK08-rated for impact resistance.
- Built-in Speakers – Integrated 2W stereo speakers for multimedia or kiosk use.
- Elo Edge Connect™ Ready – Add peripherals like card readers, barcode scanners, cameras, and fingerprint readers.
- Touch OSD Controls – On-screen display settings can be controlled directly via the touchscreen.
- Mounting Flexibility – VESA-compatible for desktop, wall, or pole mounting; kiosk-ready with “touch-through-glass” capability.
- Description
- Additional information
- Reviews (0)
- Download
Description
Elo 1504L 15.6” Anti-glare Touchscreen Monitor
Product Codes: E969493 (stand), E969292 (no stand)
Product Overview
- The Elo 1504L is a 15.6″ Full HD (1920×1080) commercial-grade touchscreen monitor.
- Features an optically bonded TouchPro PCAP display that supports up to 10 simultaneous touches, delivering fast, accurate, and tablet‑like interaction.
- Built to withstand demanding environments with IP54 sealing (protection from dust and spills) and rugged construction.
Key Features
- Optical Bonding + Anti‑Glare Cover Glass: Enhances touch responsiveness, durability, and clarity while reducing reflections.
- Multiple I/O Options:
- USB‑C (display, touch, power)
- HDMI & DisplayPort
- USB‑A for peripherals
- Elo Edge Connect™ ports for add-ons like barcode scanners, MSRs, RFID readers, cameras, and more
- Integrated Speakers: Dual 2 W speakers built right in
- On-Screen Display (OSD): Full touchscreen OSD controls—navigate settings directly on-screen
Integration & Accessories
- Mounting versatility: Compatible with desktop stands, wall mounts, VESA, and pole mounts.
- Kiosk-ready: Optical “touch-through-glass” capability—works even when covered by up to 6 mm of protective glass.
- EloEdge Connect support expands functionality with seamlessly attached peripherals.
- Warranty: Standard 3‑year coverage, with optional extended plans available.
Ideal Use Cases
Designed for demanding commercial environments, including:
- Point-of-sale (retail, hospitality)
- Self‑service kiosks (malls, restaurants, airports)
- Kitchen display systems
- Warehouse automation, HMI, access control
- Healthcare check‑ins and industrial terminals
Additional information
| Options | Elo 1504L 15.6-inch Wide LCD Desktop, Touchscreen with Stand, USB-A, USB-C, HDMI and DP Inputs (E969493), Elo 1504L 15.6-inch Wide LCD Desktop, Touchscreen without Stand, USB-A, USB-C, HDMI and DP Inputs (E969292) |
|---|
