Description

Elo 10-inch I-Series 5 with Android Touchscreen Computer

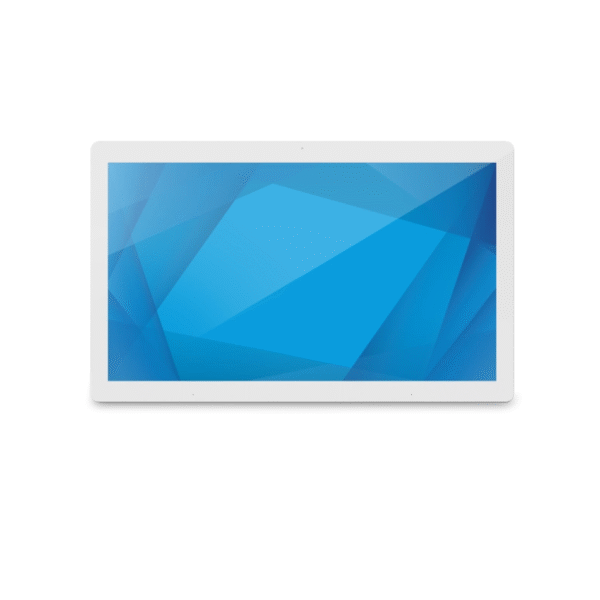

Product Code: E539154 (Black), E539346 (White)

Elo’s I-Series delivers the modularity businesses need into a sleek and durable fixed tablet form factor. Complete with a 10-inch HD touch display, flexible Android 14 OS, powerful Qualcomm 6490 processor, WiFi 6E, optional POE and four edge connect ports, the I-Series provides the versatility to fit almost any application.

Key Features:

• Display: 10.1″ diagonal HD touchscreen with 16:10 aspect ratio and 1920 × 1200 resolution (60 Hz).
• Operating System: Android 14, fully capable of supporting Google Play Services (AOSP compatible).
• Processor & Connectivity: Powered by the Qualcomm QCS6490 processor and supports Wi-Fi 6E and Bluetooth 5.2.
• Memory & Storage: Equipped with 8 GB of RAM and 64 GB of flash storage.
• Touch Technology: Projected capacitive (TouchPro® PCAP) touch supporting up to 10 simultaneous touches. It can sense through up to 6 mm of glass or 3 mm of plastic for up to two touches.
• Connectivity Ports:
  • USB-A 3.0 (900 mA)
  • RJ-45 Ethernet (Gigabit LAN) with optional PoE (up to 51 W)
  • USB-C output (up to 15 W with 65 W power brick; up to 27 W with 90 W brick)
  • DC power input
• Camera & Audio: 8 MP autofocus webcam (max 3200 × 2400 @ 30 fps), dual built-in digital microphones, and stereo speakers (1.5 W each).
• Power & Efficiency:
  • Typical power usage: 6.0 W (on), 2.0 W (sleep), 0.2 W (off)
  • AC input: 100–240 VAC, 50–60 Hz
  • PoE option providing up to 51 W
• Physical Attributes:
  • Dimensions: 10.34″ × 7.06″ × 1.28″ (262.6 mm × 179.4 mm × 32.5 mm)
  • Weight: approximately 2.86 lb (1.3 kg) unpackaged; varies slightly when packaged depending on PoE inclusion
• Durability & Certifications:
  • Seal ratings: IP65 (front), IP54 (back)
  • Compliant with UL/cUL, FCC, IC, CE, CB, VCCI, MIC, and RCM certifications
  • MTBF (Mean Time Between Failures): approx. 50,000 hours
• Environmental Tolerances:
  • Operating: 0 °C to 45 °C (32 °F to 113 °F)
  • Storage: –20 °C to 50 °C (–4 °F to 122 °F)
  • Relative humidity: 20–80% (operating), 5–95% (storage)
• Mounting & Expansion:

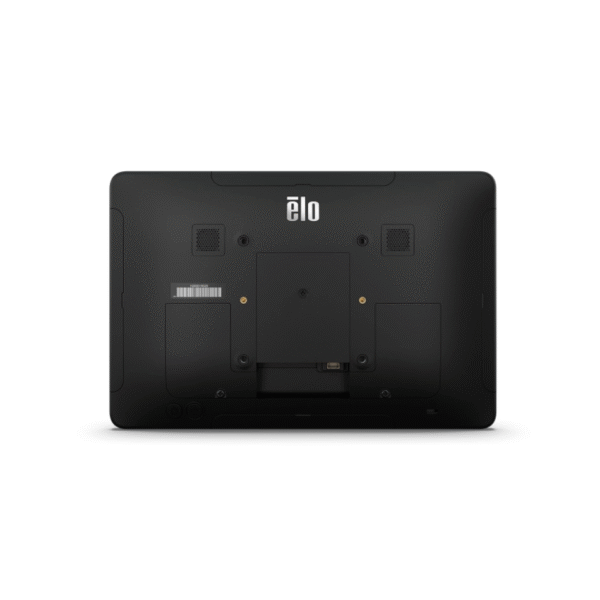

  • VESA 75 mm mounting
  • Optional accessories include various stands, pole mounts, and desk kits
• Warranty & Service:
  • Standard 2-year warranty
  • Multiple optional extended warranties and service plans (3-5 years, including OS 360 and Accidental Damage Protection)
• Global Availability: Available across numerous regions—including USA, Canada, Europe, Australia, Japan, Brazil, and many others

Summary & Use Cases

This Elo 10-inch I-Series 5 Android touchscreen computer offers a compact yet powerful solution suitable for a variety of business applications:

• Versatile deployment: Ideal for self-service kiosks, point-of-sale stations, kitchen displays, industrial controls, price checkers, and more.
• Robust and future-ready: With Android 14, Wi-Fi 6E, and enterprise management via EloView, it’s designed for performance and scalable deployment.
• Flexible installation options: Power over Ethernet setup and multiple mounting solutions support streamlined and modular deployments.
